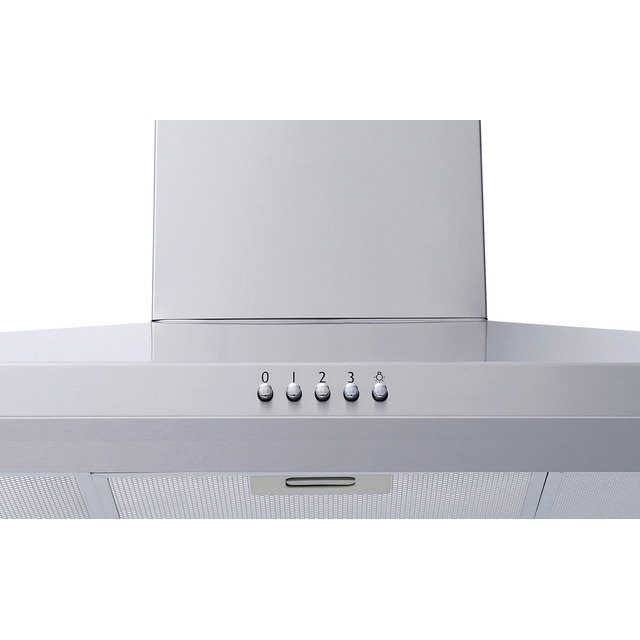

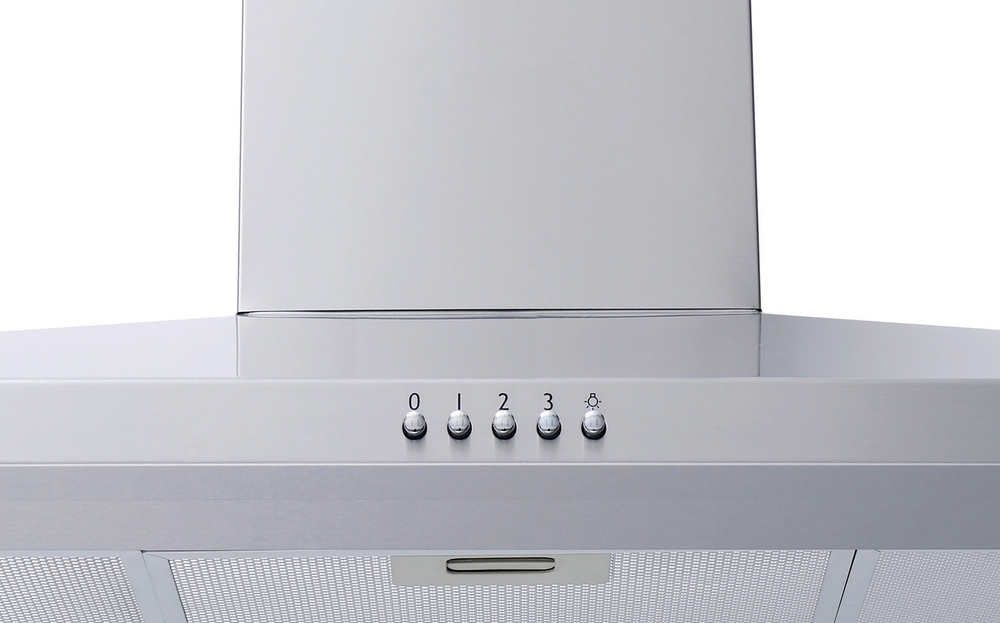

3 speeds
Three different speeds to set the air flow at the correct level according your needs.
ProductHoods3690173419CCH9MXGGWALL-MOUNTEDfilterAttr:Freestanding Wall DecorativefilterAttr:Stainless SteelfilterAttr:Wall-mountedenergyClass:A

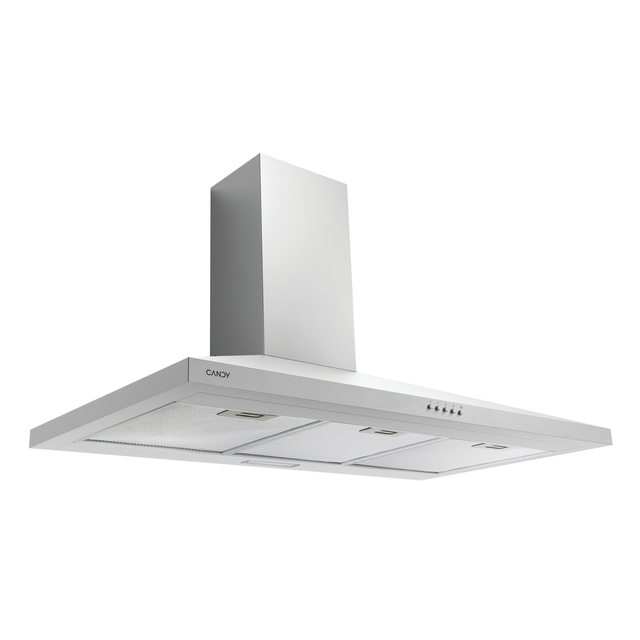

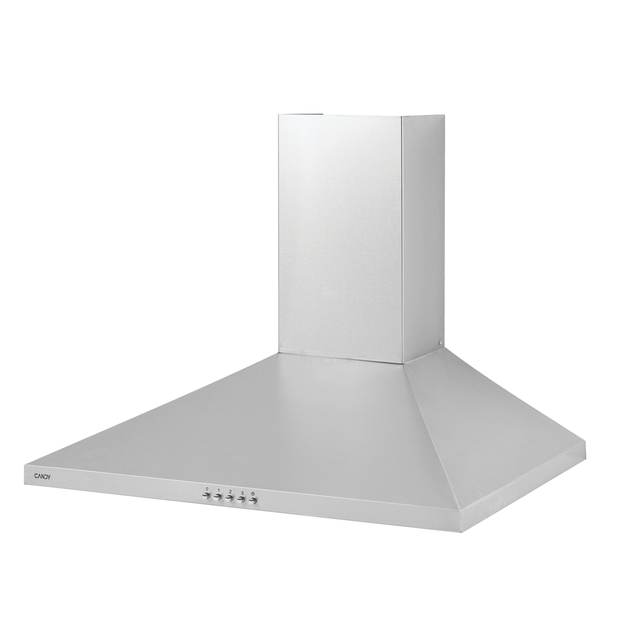

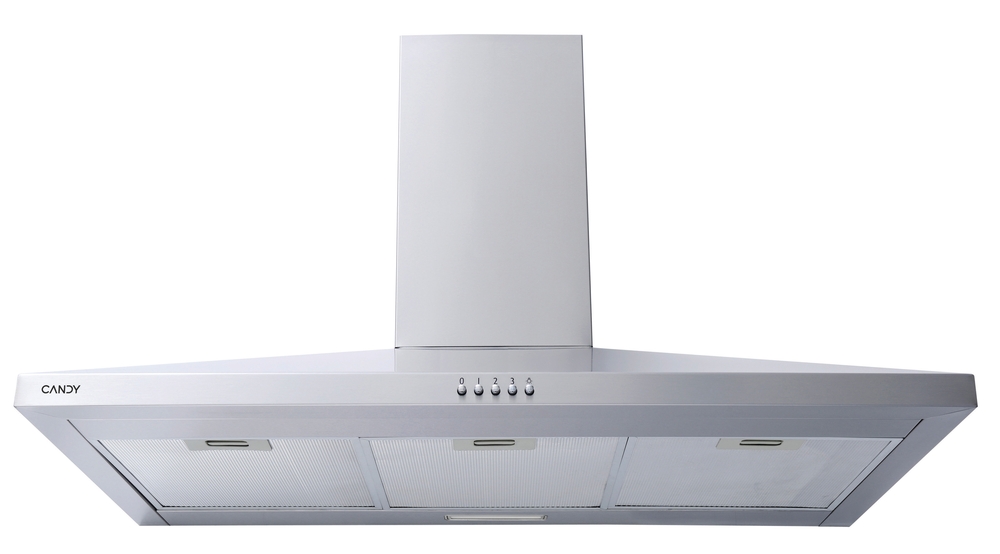

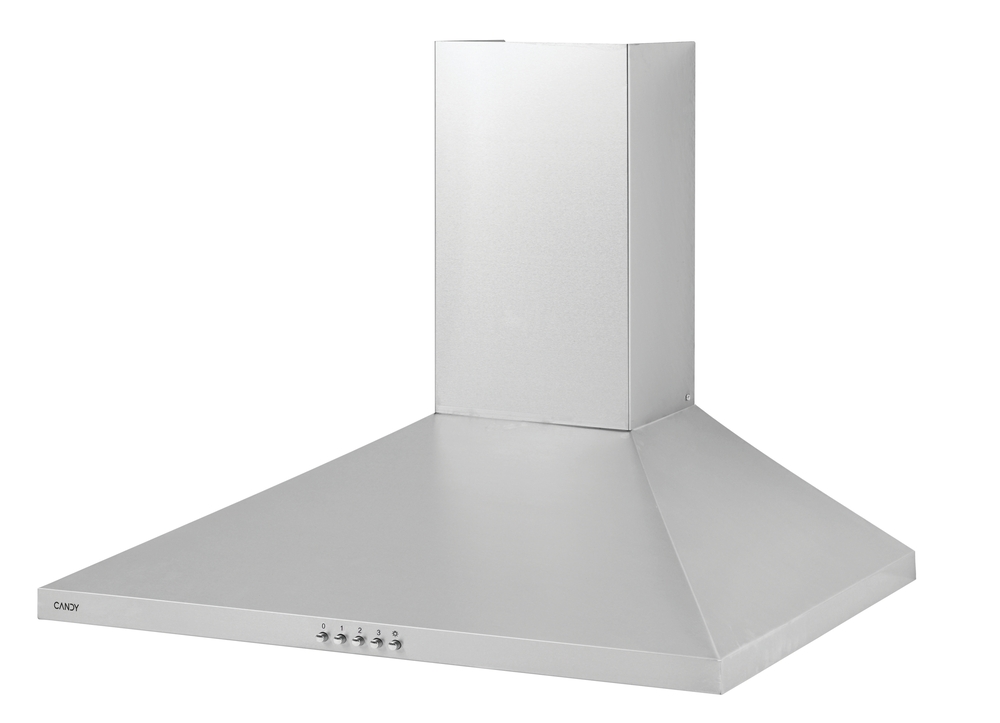

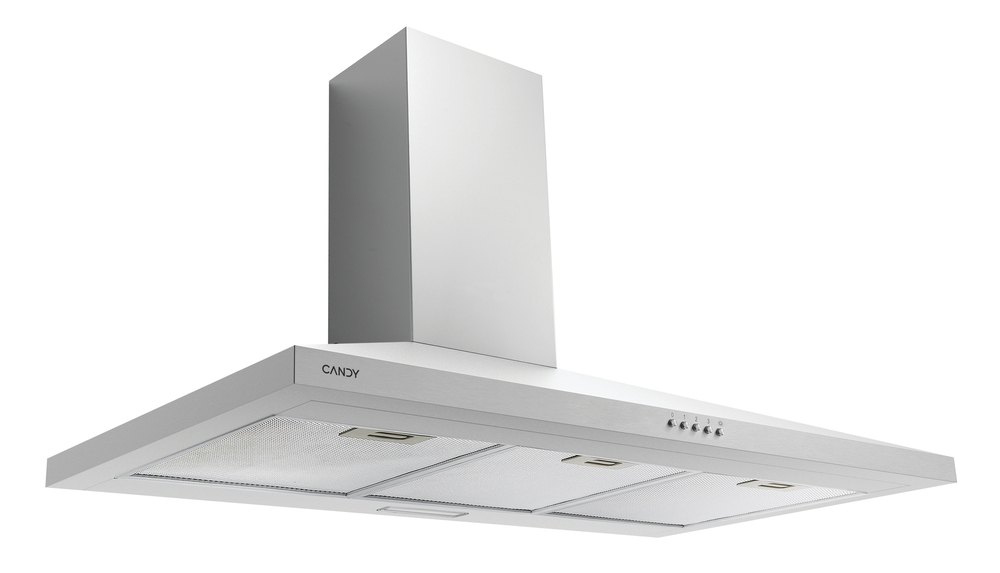

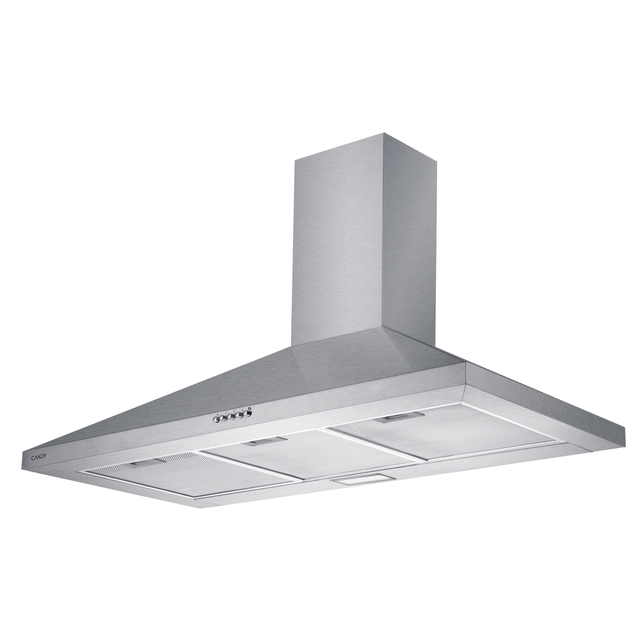

CCH9MXGG
Hoods WALL-MOUNTED
Wall-mounted, Freestanding Wall Decorative, Stainless Steel, LED, stainless steel, Stainless Steel
Diameter of air outlet (mm)150
Noise level [dBA]52
Air flow at Max speed Qmax (m3/h)285.1
Height of the product 796Depth (mm) 490Product Width (mm) 900
Height of the packed product (mm) 535Depth of the packed product (mm) 275Width of the packed product (mm) 950
Aluminium filter
Aluminium filter guarantee better durability and performance.
LED light
LEDs provides a better light to the cooking area helping in food preparation, offering 90% less energy and lasting longer than conventional bulbs.
Detail Sheet
MAIN FEATURES
- Product name / Commercial code
- CCH9MXGG
- Product code
- 36901734
- EAN Code
- 8059019043821
- Installation type
- Wall-mounted
- Typology
- Freestanding Wall Decorative
TECHNICAL FEATURES
- Connectivity
- None
- Frequency (Hz)
- 50
- Grease filter type
- Multilayer cassette
- Total power of the lamps (W)
- 1.5
- Type of control
- Mechanical
- Number of motors
- 1
- Type of lamps used
- LED
- Voltage (V)
- 220-240
PROGRAMS AND FUNCTIONS
- Number of speed settings
- 3
AESTHETICS
- Colour
- Stainless Steel
- Material body
- stainless steel
PERFORMANCE
- Air flow at at intensive or boost setting (m3/h)
- 0
- Air flow at Max speed Qmax (m3/h)
- 285.1
- Energy efficiency class - NEW (2010/30/EC)
- A
- Noise level [dBA]
- 52
- Power (W)
- <1000 W
DIMENSIONS
- Height of product without chimney (mm)
- 166
- Diameter of air outlet (mm)
- 150
- Height of the product
- 796
- Product Width (mm)
- 900
- Depth (mm)
- 490
- Height of the packed product (mm)
- 535
- Width of the packed product (mm)
- 950
- Depth of the packed product (mm)
- 275
- Gross weight (kg)
- 12.1
- Net weight (kg)
- 9.5
